The Composition And Function Of Precision Stamping Die
Everyone knows that the processing of precision stamping parts is inseparable from stamping dies. Stamping dies are a special process equipment for processing materials (metal or non-metal) into parts (or semi-finished products), and are widely used in the metal processing industry. However, the structure and composition of precision stamping parts molds are relatively complicated, and many people don't know much about it. Below, Shiyunjia Industry will introduce the composition and function of precision stamping parts molds in detail.
Everyone knows that the processing of precision stamping parts is inseparable from stamping dies. Stamping dies are a special process equipment for processing materials (metal or non-metal) into parts (or semi-finished products), and are widely used in the metal processing industry. However, the structure and composition of precision stamping parts molds are relatively complicated, and many people don't know much about it. Below, Shiyunjia Industry will introduce the composition and function of precision stamping parts molds in detail.
The mold is an important part of the processing of metal stamping parts, and the quality of the mold determines the quality of the metal stamping parts. Therefore, there are high requirements for the manufacture of molds, and the thermal processing of the mold has a great impact on the performance and service life of the mold. In order to ensure the quality of the mold, it is necessary to understand the thermal processing technology and precautions of the metal stamping mold

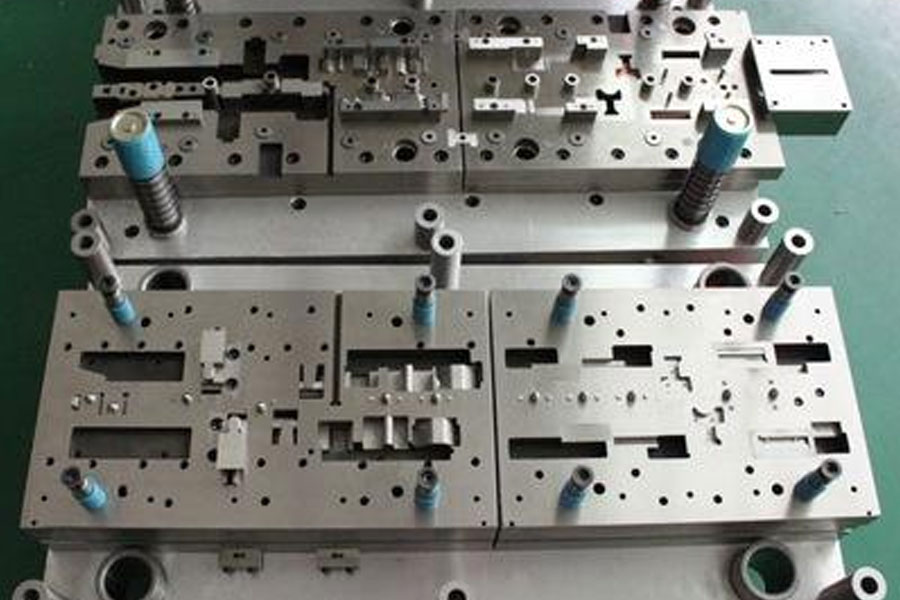

Precision stamping die
Precision stamping parts molds are mainly composed of the following parts:
- Working parts: punches, dies, etc., mainly to complete the separation or formation of precision stamping parts/precision terminal materials.
- Positioning parts: stopper pins, positioning pins, positioning baffles, etc., are mainly used to locate the correct position of precision stamping parts/precision terminal blanks in the mold.
- Guide parts: guide posts, guide sleeves, guide plates, etc., mainly to ensure the correct movement of the upper and lower molds.
- Supporting parts: upper and lower templates and fixed plates of concave and convex molds, etc., which are mainly used to connect and fix working parts.
- Fastening parts: hexagon socket screws, stripper screws, pull pins, etc., which are mainly used to connect and fasten various parts to make them integrated.
- Cushioning parts: steel wire springs, polyurethane rubber springs, etc., mainly use its elastic force to unload and return materials.
- Pressing, unloading and ejecting parts: press plate, unloading plate, ejector, blank holder, etc., mainly play the role of separating parts and waste from the mold, and press in the drawing die. The edge force ring also prevents instability and wrinkles.
Regarding the composition and function of precision stamping die, I will introduce it here today. The quality of the precision stamping parts mold affects the forming quality of the stamping parts, so the reasonable design and manufacture of the mold is very important.
