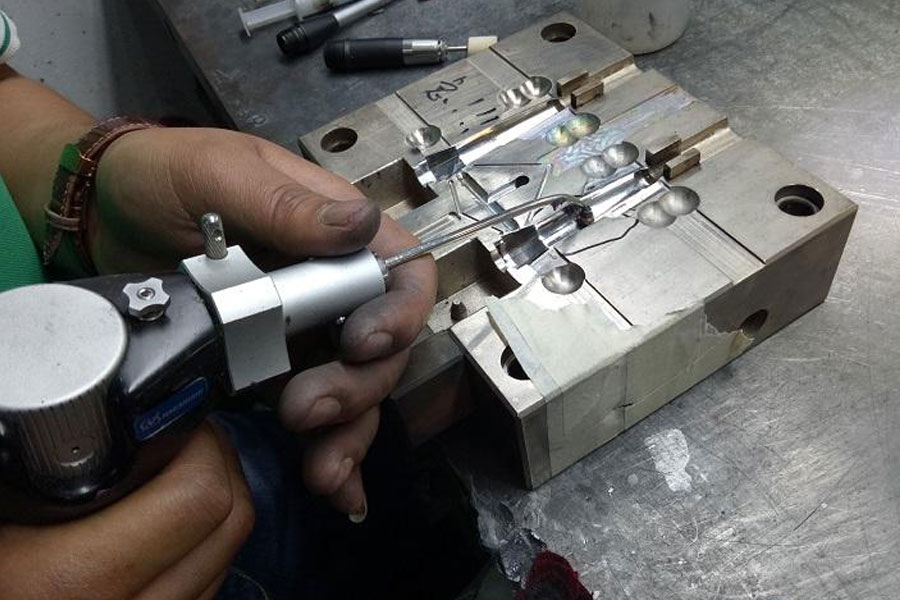

The Processing Flow Of Precision Casting Mold

The precision casting mold is also called lost wax casting, and its old product is complex, precise, and close to the final shape of the part. It can be used directly without processing or with a lot of processing, so investment casting is an advanced technology with near net shape. Minghe Hardware will introduce to you how the processing flow of precision casting molds is formed?

Factors affecting the dimensional accuracy of precision casting molds

Under normal circumstances, the dimensional accuracy of precision casting is affected by many factors such as casting structure, mold making, casting material, roasting, shell making, pouring, etc. Any setting or unreasonable operation of any link will cause the shrinkage of the casting. Changes have led to deviations in the dimensional accuracy of the castings from the requirements. The following are the main factors that may cause defects in the dimensional accuracy of precision castings:

1. The influence of casting material: the higher the carbon content in the material, the smaller the linear shrinkage, and the lower the carbon content, the greater the linear shrinkage; the casting shrinkage of common materials is as follows: casting shrinkage k=(LM-LJ) /LJ*100%, LM is the cavity size, LJ is the casting size. K is affected by the following factors: wax mold K1, casting structure K2, alloy type K3, pouring temperature K4;
2. The influence of shell-making materials: zircon sand, Shangdian sand, zircon powder, and Shangdian powder are used. Because of their small expansion coefficient, only 4.6*10-6/℃, it can be ignored;
3. The influence of casting structure: casting wall thickness, large shrinkage rate, thin casting wall, small shrinkage rate; large free shrinkage rate, small hindering shrinkage rate;
4. The effect of mold making on the linear shrinkage rate of castings: the linear shrinkage rate of wax (mold) material is 0.9-1.1%; the radial shrinkage rate of the wax mold is only 30-40% of the longitudinal shrinkage rate, and the wax injection temperature is free The effect of shrinkage is far greater than that of hindered shrinkage (the best sand shooting temperature is 57-59℃, the higher the temperature, the greater the shrinkage); the influence of wax injection temperature, wax injection pressure, and pressure holding time on the investment size The wax injection temperature is the most obvious, followed by the wax injection pressure. The pressure holding time ensures that the final size of the investment mold after the investment is formed is small; when the investment is stored, it will shrink further, and its shrinkage value is about the total 10% of the shrinkage, but after 12 hours of storage, the investment size is basically stable;
5. The influence of casting temperature: the higher the casting temperature, the greater the shrinkage rate, and the lower the casting temperature, the smaller the shrinkage rate, so the casting temperature should be appropriate;
6. The influence of the mould shell roasting: due to the small expansion coefficient of the mould shell, when the mould shell temperature is 1150℃, it is only 0.053%, so it can be ignored.

 Ancient China: Prince Wuding, Bronze Lion, Bronze Forbidden, etc., are all masterpieces of investment casting. Since investment casting was used in industrial production in the 1940s, it has been developing at a relatively rapid rate for half a century. Especially European and American countries are developing rapidly. Investment casting is used in almost all industrial sectors, except for the aviation and weapons sectors. Especially in the sectors of electronics, chemicals, Giti Transportation, petroleum, energy, textiles, medical equipment, light industry, pharmaceuticals, valves, pumps, etc. China has also developed rapidly in recent years.

The development of investment technology has enabled investment casting components to produce small castings and relatively large castings. The outline size of the largest investment casting is nearly 2m, while the minimum wall thickness is less than 2mm. At the same time, investment castings are becoming more and more popular. Precision, in addition to linear tolerances, parts can also reach higher geometric tolerances, and the surface roughness of investment castings is getting smaller and smaller, which can reach RaO.4um.

Please keep the source and address of this article for reprinting: The Processing Flow Of Precision Casting Mold
